New 180 Image-Train

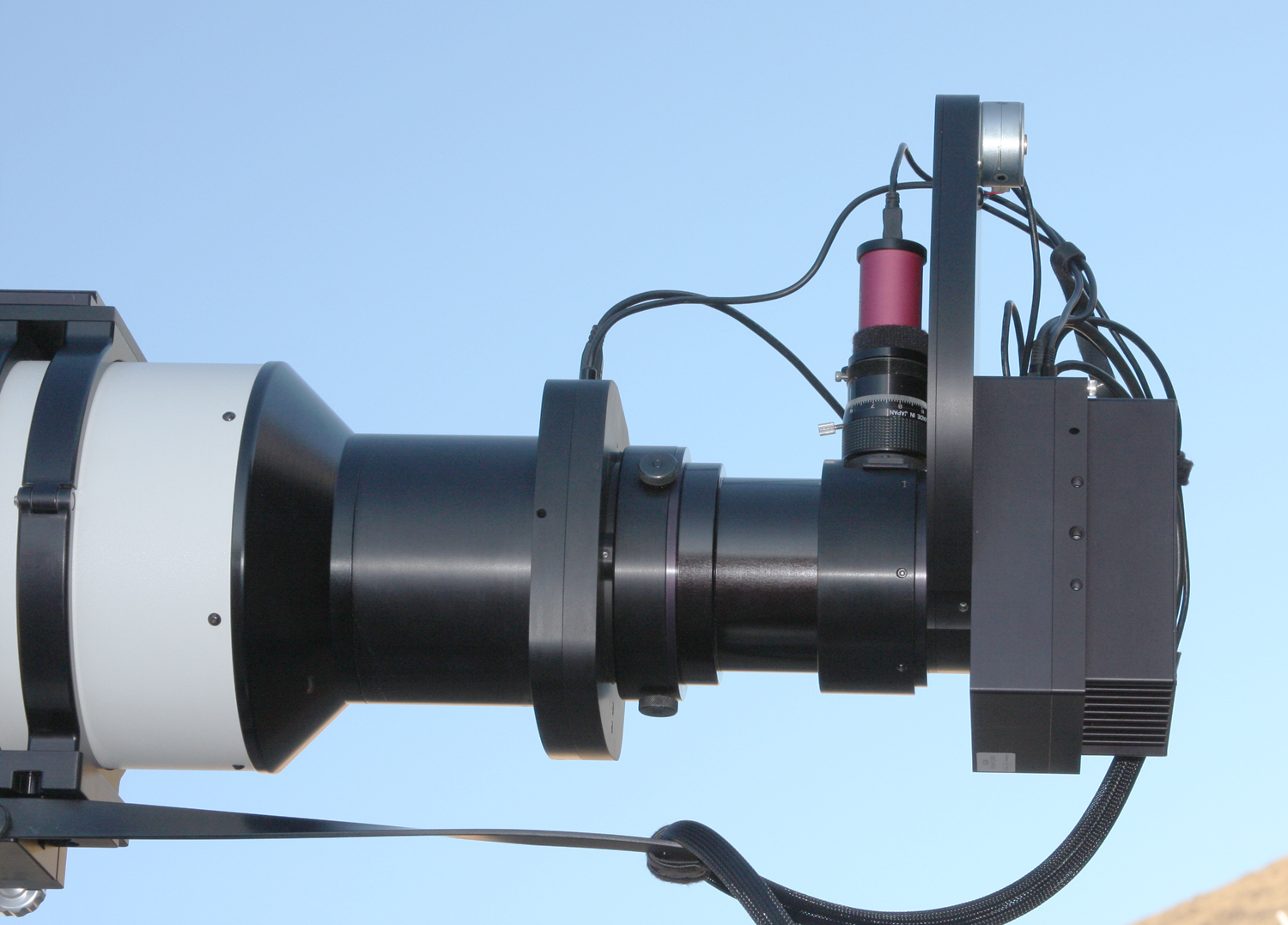

Notes: This shows everything that is attached to the back of the TEC 180 for imaging. From left to right; You have a *custom adapter/spacer, this completely replaced the stock 3.5” Feather-Touch focuser. The FLI-Atlas focuser, a *custom three point adapter, a *custom adapter that attaches the TEC field-flattener to the custom three point adapter, (this can also be used to rotate the camera if needed) the TEC 180 field-flattener that thread directly into the *custom OAG, an SBIG Sti-guider, FLI 5-7 filter wheel w/gen 2 LRGB and 3nm Ha-S2-03 filters , FLI-PL16803attached or the FLI-MLx694 camera.
* All custom adapters are home made by myself.
